SPECIFICATIONS

Brand Name: Nohawk

Origin: Mainland China

Measurement Accuracy: ±0.2% Brix

Weight: 84g

Min. Div.: 0.1% Brix

Brix Range: 0-55% Brix

Model Number: BM-04S

Certification: CE

Brix Min. Div.: 0.1% Brix

Size: 140*55*35MM/5.5x2.2x1.38inch

Usage: Sugar

Measurement Range: 0-55% Brix

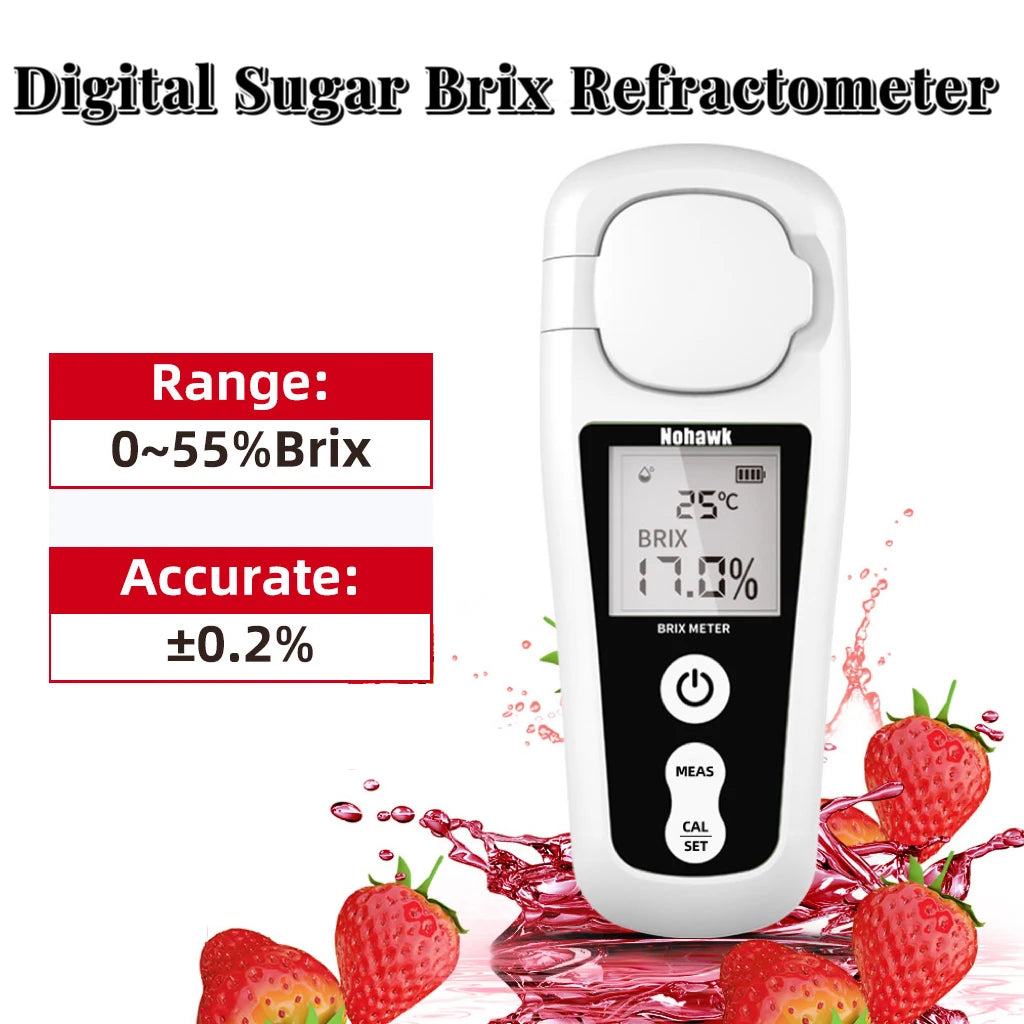

Product Name: Refractometer Digital Tester

Measurement range: 0-55% Brix

Accurate: ±0.2% Brix

Size: 140*55*35MM/5.5x2.2x1.38inch

Weight: 84g

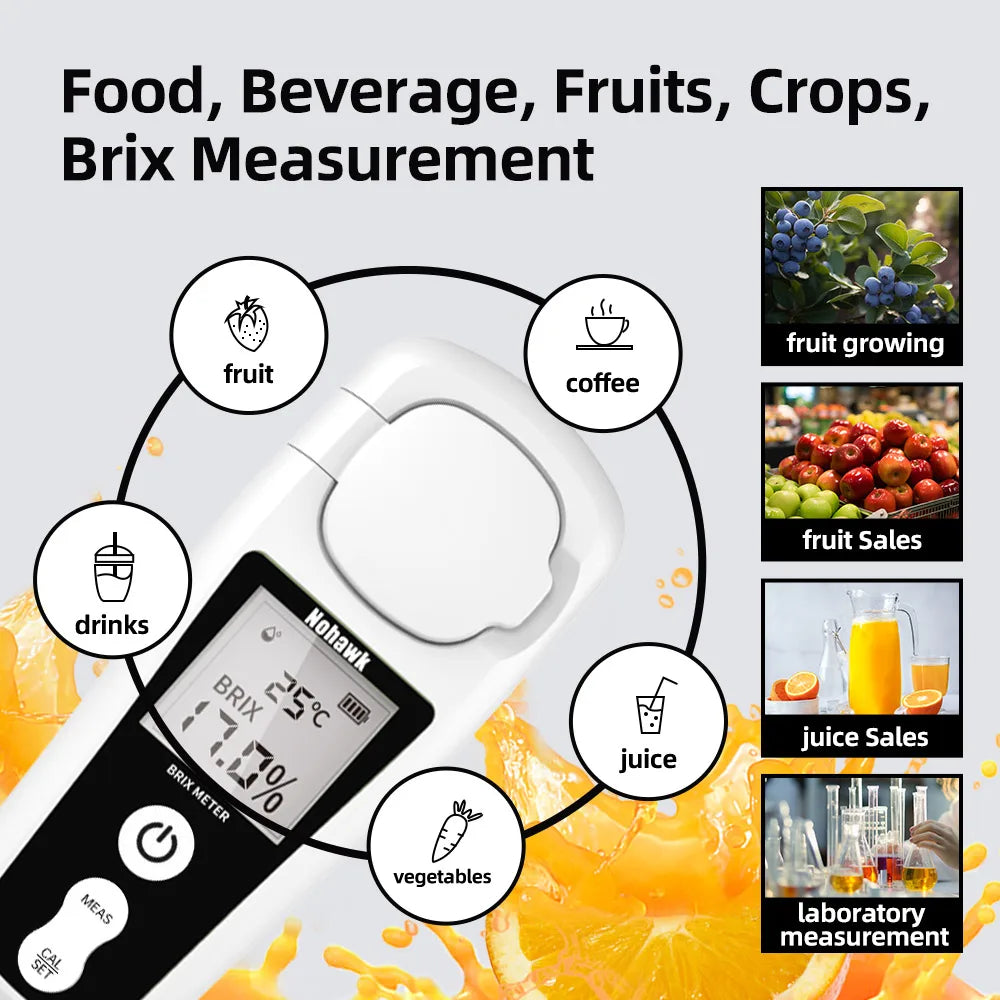

Application: for Honey,Maple Syrup,Fruit,Beverages,Juice,Molasses,Sugary Drink,Suger Content Measurement

Nohawk Digital Brix Refractometer Range 0-55% Accuracy ±0.2% Portable Handheld Measures Sugar Content in Honey Wine Beer Liquids

NOTE!!!

1.Test pure water brix is 0.0% before every using(±0.2% accuracy),if not ,please calibrate first.

2.Sample quantity：1/2 of the depth of the sampling tank at least.

3.Cleaning measuring tank before measuring and calibration.

l Accurancy:0.2%

l Range: 0-55%

l Resolution:0.1% Brix

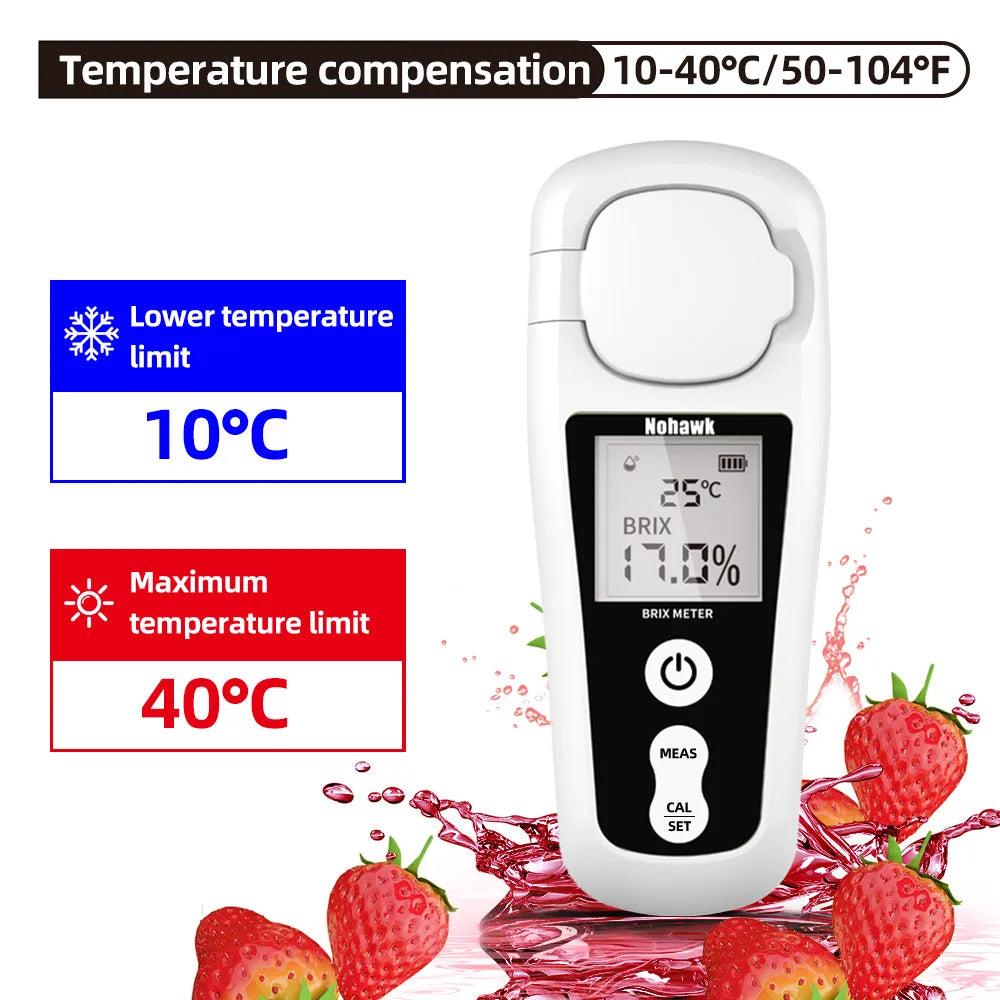

l Ambient Temperature:10-40℃

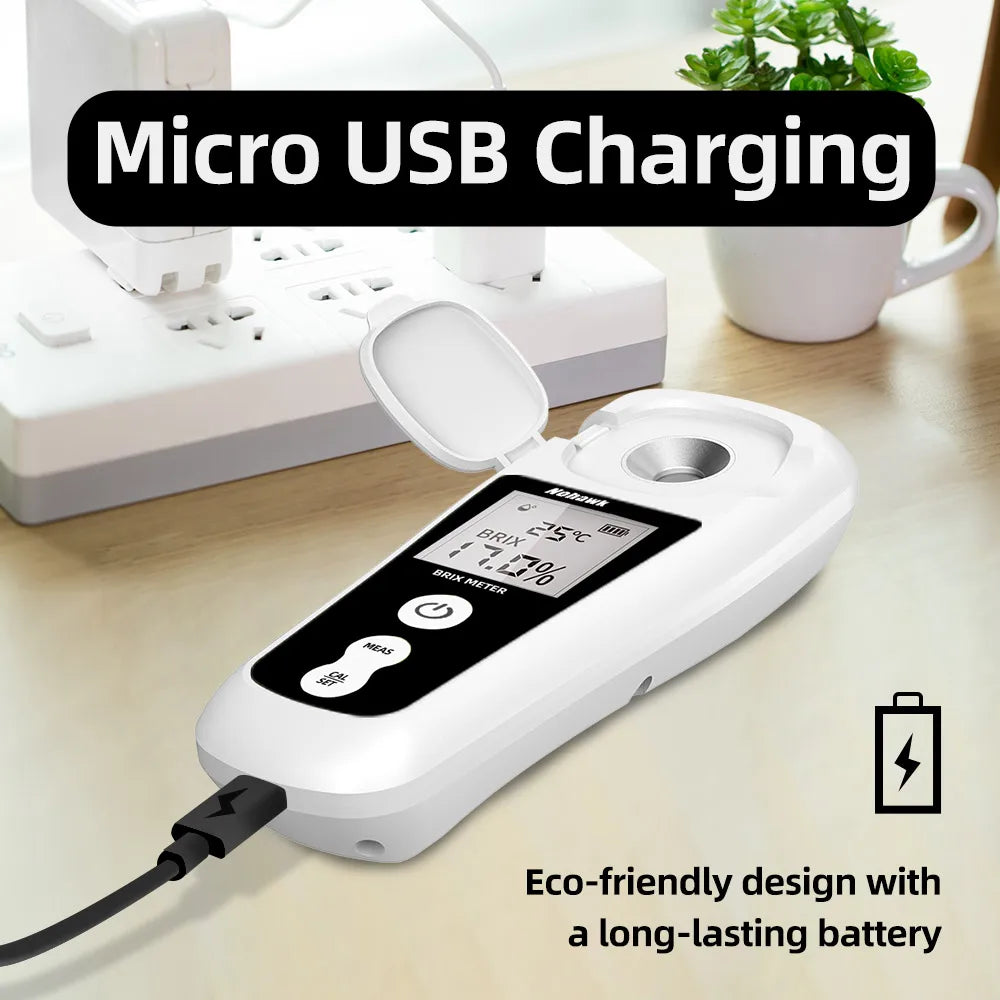

l Battery:Lithium

一. Calibration:

①Clean the sample chamber and Power on.

②Drop about 0.3ml purified waterat least,close the lid

③Pressthe "CAL/SET "button to prepare for calibration.

④Twinkling

⑤Press "CAL/SET "button again to confirm thecalibration.

⑥It will show 0.0% brix,calibration succeed

二．How to use:

①Clean the sample chamber and Power on.

②Drop samples.

③Close the lid

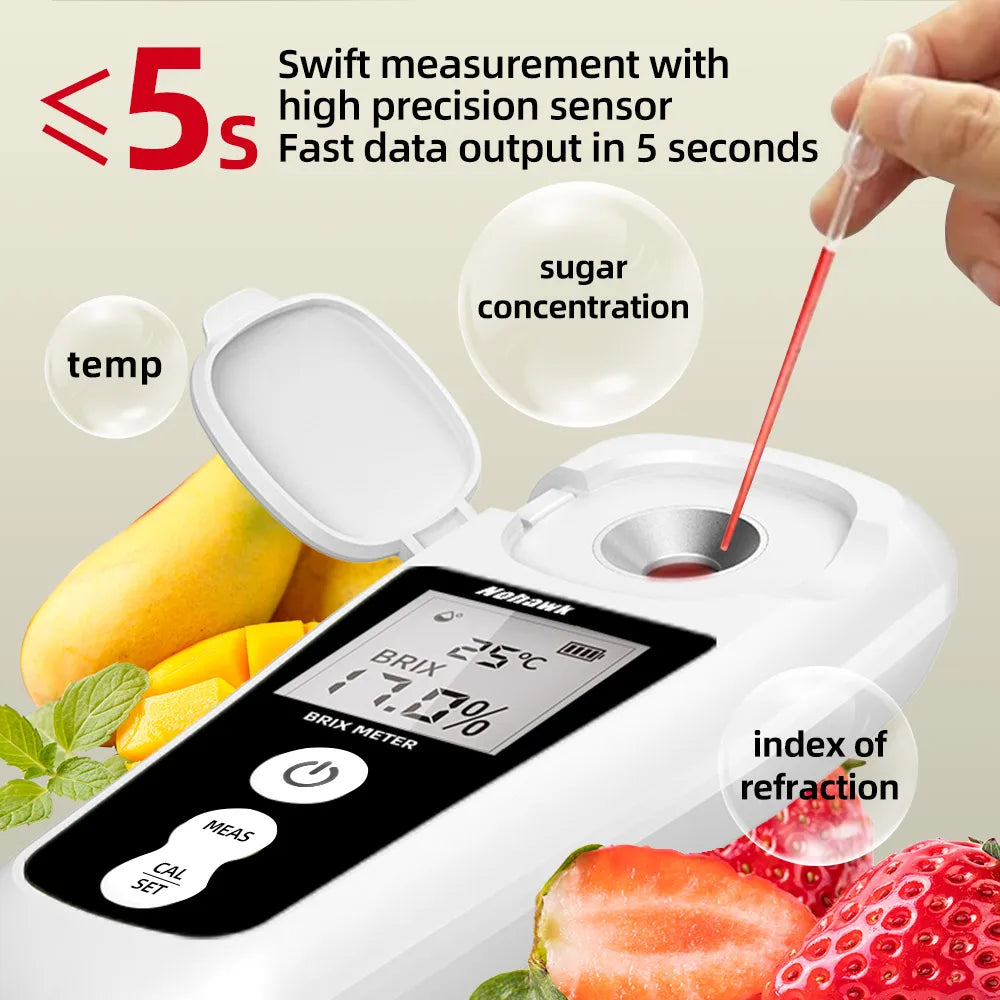

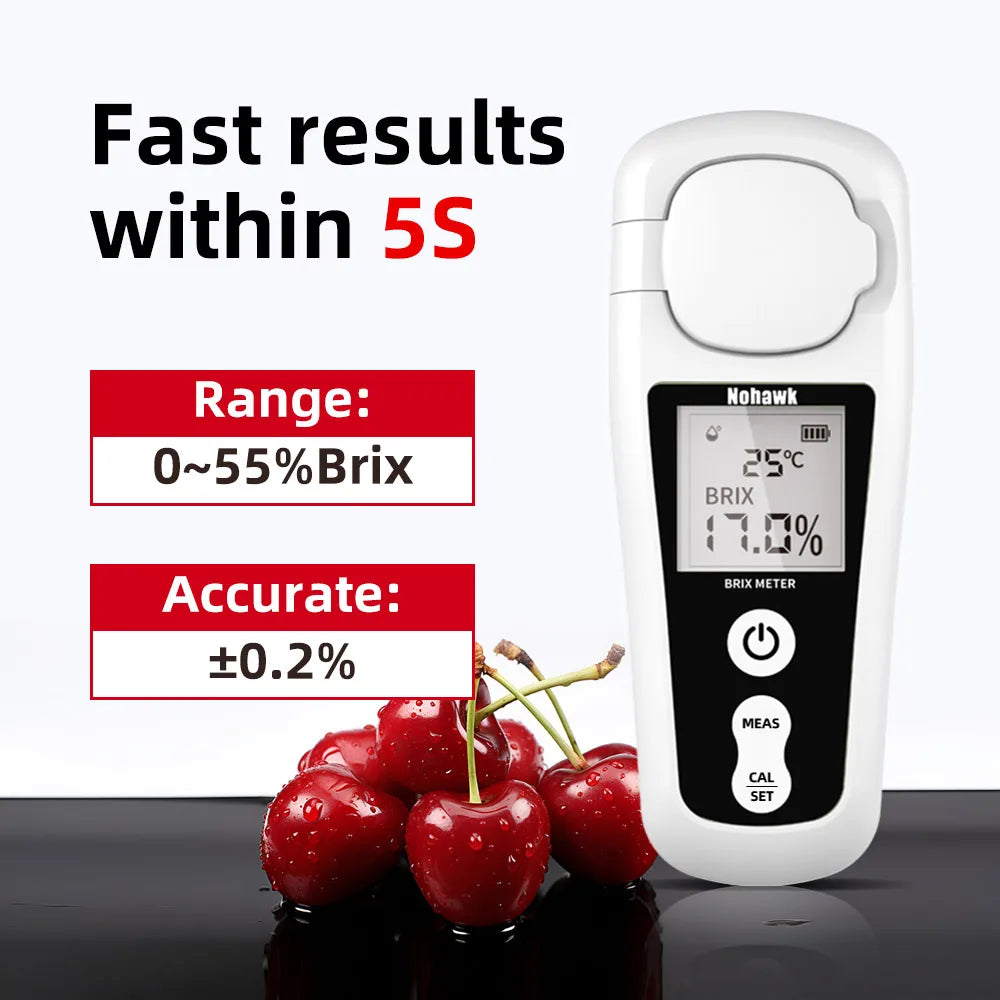

④Press "MEAS"button to getdata within 5 seconds.
